Active speakers

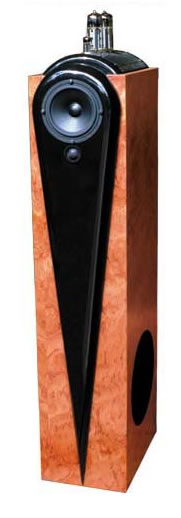

Dana Electro Acoustics 108:dB

  • frequency response 20Hz to 20 kHz
  • gold plated unbalanced RCA female socket and XLR(balanced) male socket inputs and + / - 2.5dB control in 0.5dB steps for tweeter and bass via two sealed stepped attenuators featuring gold plated contacts and audio grade resistors; input sensitivity 1.5V pink noise signal for 108dB SPL at 1m, stereo pair
  •  one 25mm (1") soft fabric dome, neodymium magnet driver
  •  one mineral filled polypropylene cone driver, OD140mm (5.5")
  • one long throw long fiber pulp cone driver OD 210mm (8")
  • one class A transistor amplifier powering tweeter above 4069kHz
  • one class A valve amplifier powering bass-midrange from 92Hz to 4096kHz
  • one class AB transistor amplifier powering low bass below 92Hz
  •  one active crossover

Price $47.000



Added 1/2014

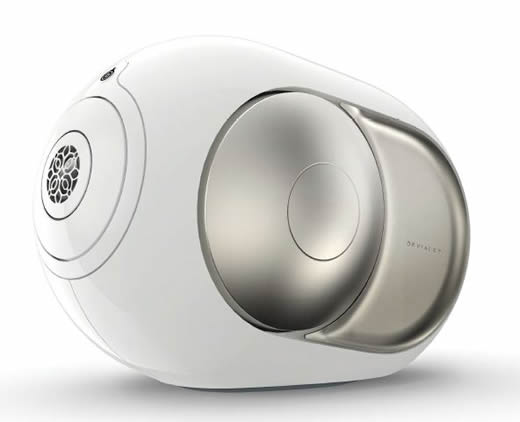

Devialet Phantom € 1690 (piece)



16Hz to 25kHz at +/- 2d B

Sound Pressure Level 99 dBSPL at 1 meter
Amplification power 750 W peak
Digital Analog Converter TI PCM1798 24bits/192kHz

Size and weight
- Weight: 10.5 kg
- Width: 253 mm
- Height: 255 mm
- Depth : 343 mm

Connectivity
Dual-band Wi-Fi (a/b/g/n 2.4 GHz & 5 GHz)
Ethernet RJ-45 10/100/1000 MHz (Gigabit)
PLC Homeplug AV2
Toslink optical input (T V, blu-ray, video games console, ...)
Synchronization 1 to 24 Phantoms




Added 11/2014

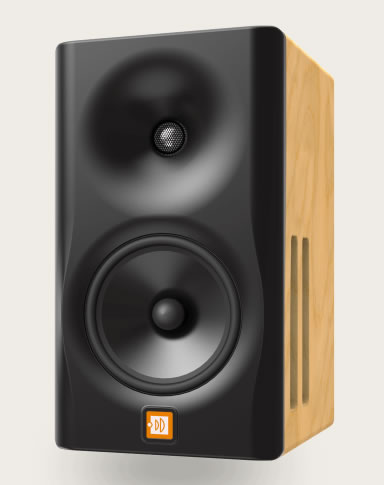

Dutch & Dutch Studio 8c € 5000 piece



Monitor with two back firing woofers and open baffle for the mid-range.




COMPONENTS
  • LF: 8" WOOFER (2X)
  • MF: 8" WOOFER
  • HF: 1" ALLOW DOME TWEETER
ENCLOSURE TYPE
  • LF: SEALED
  • MF: ACOUSTIC RESISTANCE BOX
FREQUENCY RESPONSE
  • 30 HZ - 20 KHZ ± 1.5 DB
  • -6DB @ 20 HZ
AMPLIFIER POWER
  • LF: 500 W
  • MF: 250 W
  • HF: 250 W
DIMENSIONS (H X W X D)
  • 525 X 759 X 947 MM
  • (19 X 10.5 X 15 IN)
WEIGHT 32 KG
Added 2016

Dynaudio XEO 2

  • Frequency Response (+/- 3 dB): 40 Hz - 24 KHz
  • Box Principle: Bass Reflex
  • Crossover: 2-way
  • Crossover Frequencies: 3100Hz
  • Crossover Slope: 24dB
  • Woofer: 14 cm MSP
  • Tweeter: 27 mm
  • Woofer Amplifier Power: 65W
  • Tweeter Amplifier Power: 65W
  • AC Power Input: 100 - 240 V, 50/60 Hz
  • Power Consumption: 6-100W
  • Power Consumption, Standby: <0,5W
  • Weight: 4 kg
  • Dimensions (W x H x D mm): 173 x 255 x 154

  • Digital Audio In: Toslink (Up to 192 kHz)
  • Analog Audio In: RCA, Minijack
  • Bluetooth: A2DP, aptX, AAC, SBC
  • Wireless: Hub (16/48), Connect (16/48 and 24/96)
  • Service: USB (Service only)

Dynaudio Lyd 48

3 way active with class D amplification and 96kHz / 24bit DSP.

$1500,- piece.
