Active speakers

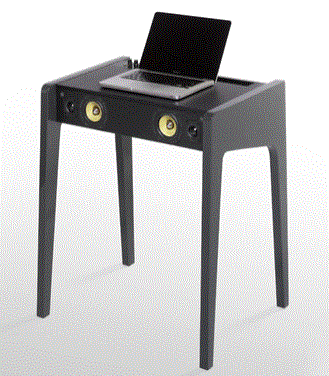

La Boite concept LD130 1,180

Active 2.1 with built-in USB DAC

Libratone Beat €699,00







System

Wireless active speaker.

Probably a 2.1 system in a singe enclosure.

Price € 699,00 (piece)
Frequency Response Frequency range: -6 dB @ 50 Hz and -3 dB @ 20.000 Hz.
Max. output: 100 dB SPL/1m
Drivers 1x5" bass, 2x3" midrange and 2x1" ribbon based tweeter.
Digital input

Plays audio from iPod, iPhone or iPad using the wireless 30-pin transmitter (range 10 m) or from a USB equipped MAC/PC using the wireless USB transmitter (range 30 m).

Analogue input

3.5 mm mini jack analog input.

Amp

1x50W bass, 2x25W tweeter/midrange

Crossover



Dimensions H: 47 cm. W: 19.5 cm. D: 15 cm. Weight 6.5 kg.

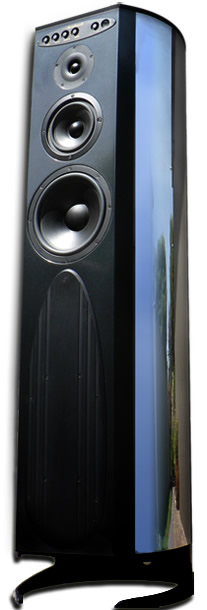

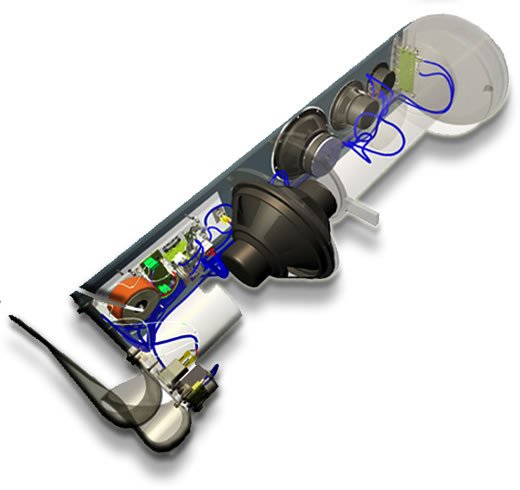

Lenard Audio Sarabande

System 4-way active
Cabinet Circular box, isobaric (bass)
Price AU$ 10,000 (pair)
Speakers/Amps
100 Watt amp for the tweeter (harmonics)
100 Watt amp for the 5 inch speaker (upper voice)
100 Watt amp for the 8 inch speaker (lower voice)
2 x 100 Watt amps for the 2 x 12 inch speakers (sub-bass)
Digital input

no

Analogue input RCA/XLR
Crossover

Linkwitz-Riley 4th order time aligned

20 - 100 Hz

100 - 600 Hz

600 - 6000 Hz

6000 - 20000 Hz



Siegfried Linkwitz 1935-2018



Siegfried Linkwitz was well known as the co-inventor of the Linkwitz–Riley filter along with Russ Riley. He has submitted several important technical papers to the Journal of the Audio Engineering Society and other related publications, which have become foundational to modern loudspeaker theory. Wikipedia

Linkwitz Lab Orion

System Full-range open-baffle loudspeaker
Price Starting at $8200 (pair)
Speakers

Tweeter - Seas T25CF002 - 1.4 kHz to 20 kHz

Midrange - Seas W22EX001 - 120 Hz to 1.4 kHz

Woofer - 2 x Peerless 10" XLS, 830452 - 20 Hz to 120 Hz

Digital input

n/a

Analogue input yes
Amp

8 x 60 W power amplifiers - AT6012 recommended

Crossover

3-way active Crossover/Equalizer

LR4 crossover filters (24 dB/oct acoustic)



DIY also possible.

ASP/crossover assembled and tested: $1030

Flat pack kit with everything needed to built the boxes, including wiring harness: $1300

Drivers: 4 tweeters, 2 mids, 4 woofers: $1850

12 channel ATI amp: $1800

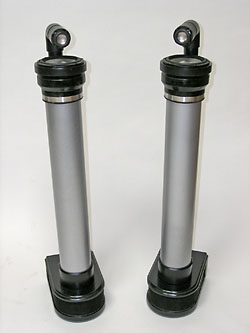

Linkwitz Lab Pluto 2.1

System

Omni-directional 2-way

Acoustic frequency response: 60 Hz to 15 kHz

12 dB/octave roll-off below 60 Hz, Omni-directional radiation below 3 kHz

Price $2995
Cabinet 4 inch and 1.5 inch or equivalent metric PVC or ABS plumbing pipesend associated end caps, knees and pipe couplers
Digital input

n/a

Analogue input RCA?
Amp

Woofer amplifier 150 W peak, Tweeter amplifier 50 W peak

Crossover Equalized woofer and tweeter response, Crossover at 1000 Hz, LR4 (24 dB/oct)



DIY possible.

Subwoofers also available

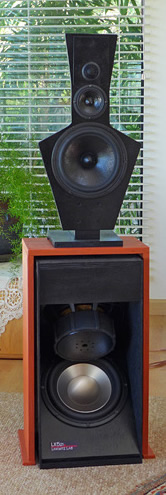

Linkwitz Lab LX521

  • 4-way loudspeaker system with woofer, lower midrange, upper midrange and tweeter
  • 3-way ASP crossover/equalizer with LR4 filters at 120 Hz and 7 kHz,
    assembled on two ORION ASP printed circuit boards
  • Passive 1st order crossover between lower midrange and upper midrange at 1 kHz,
    located in base of midrange/tweeter baffle



More Specifications
