Active speakers

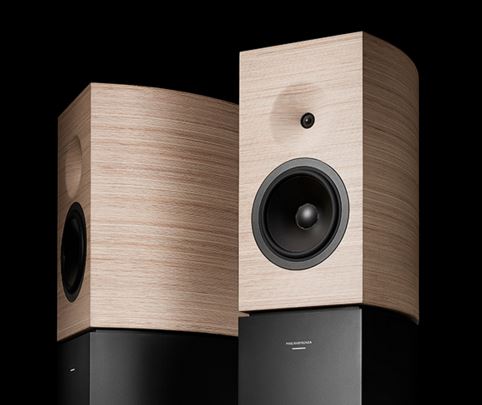

Philharmonia by Jean Nouvel



Philharmonia features an RJ-45 network input allowing remote control of its processor for an optimal adjustment via dedicated software to the acoustical properties of the listening space. The software is an App that runs on Macintosh, Apple iPad and Windows computers.





Amplitude linearity (±2dB) : 43 Hz - 22 kHz
Cut-off frequencies (-6dB) : 35 Hz
Peak SPL 1-meter (Pair, IEC Short Term) : 124 dB peak


Technical Specifications

Crossover frequency (HF, LMF) : 2170 Hz and 2170 Hz (DSP generated)
Crossover slope (HF, LMF) : 24 dB/Oct and 24 dB/Oct
Transducer (HF) : Ø 28 mm soft dome
Transducer (LMF) : Ø 230 mm bass driver
RMS capacity (HF) : 700 W @ 8 Ω, Class-D
RMS capacity (LMF) : 700 W @ 8 Ω, Class-D
Dimensions (H x W x D) : 1613 x 320 x 465 (mm)
Weight : 64,20 Kg (141,53 lbs)


Electrical Specifications

Mains voltage : 100 to 240 VAC, 50 to 60 Hz (select)
Power consumption : 45 W @ 1/8 max power (IEC 60065)
Input connectors (Analog) : 1 x Male XLR (Pin 2+, Pin 3-)
Input connectors (AES/EBU) : 1 x Male XLR (Pin 2+, Pin 3-), 1 x Female XLR (Pin 2+, Pin 3-)
Input impedance : Balanced > 10kΩ
Dynamic range : > 118 dB(A)
A to D Conversion : 64 bit
Internal sample rate : 96 kHz
Formats (AES/EBU) : 24 bit







Added 2015

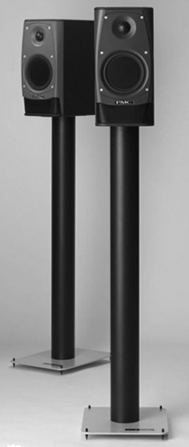

PMC AML1

System

2 way active monitor.

Price $ 9.000 USD (pair)
Frequency Response Useable frequency range: 33Hz-25kHz
Cabinet Transmission line
Digital input

N/A

Analogue input XLR
Amp

Bryston

LF 100W RMS
HF 80W RMS

Crossover

1.4kHz, 24dB/octave



PMC also has a product line targeting consumer HiFi but these are  all passive.
They do provide the speaker system for the Free.

Parrot Zikmu

System 2 way NXT panel + woofer
Price € 1200,- (pair)
Frequency Response 50-20.000 Hz
Digital input

Bluetooth/Wi-Fi(b/g)/iPod

Analogue input RCA
Amp

3 channel Class D

Crossover DSP

PSI Audio Active 215M

System

2 way active mastering monitor.



Price € 2.000 (single)
Frequency Response Response at -6dB 36 - 23000 Hz
Tolerances ±2 dB (42Hz - 20kHz
Cabinet

Bass reflex

W x H x D mm : 166 x 1110 x 250

Digital input

N/A

Analogue input XLR
Amp

120 + 40 W Class G

Crossover

1.8 kHz



Compensated Phase Response

The CPR system consists of several all pass filters who each act in a specific range of frequency in order to obtain a wide area of Compensated Phase Response. This then provides a constant group delay.



Adaptive Output Impedance system

The AOI system is constituted by a detection of the movement of the membrane and the moving coil, as well as by a counter reaction filtering. Therefore the damping rate is continuously ideally adjusted according to the frequency. The AOI circuitry is almost capable of reproducing a square wave and therefore increases accuracy by marring the transducer and the amplifier in to a perfect couple. A nice side effect of the AOI system is that the membranes of a PSI speaker do not produce parasite sounds when other speaker systems in the room are in use. When air pressure is produced by other sources than the PSI speakers the AOI will detect this and tighten the damping of its transducers in order not to produce parasite sounds not originating by the speaker system in use.

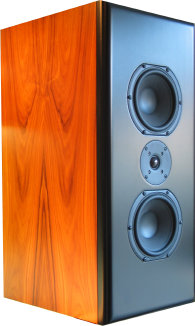

PTE - The Phoenix - US $5400 (Pair)

System

2 way

Frequency Response 32 - 22 kHz ± 2 dB
Cabinet

dual venturi ports

Digital input

-

Analogue input XLR / RCA
Amp

3 x 130 Watt

Crossover

analog



Quadral ALTAN aktiv € 2800/pr

Power (W) 200 (2 stages)
Type: 2-way
Design principle: bass reflex
Nominal/music power (W): 70/120 W
Frequency response (Hz): 38..65.000 Hz
Tweeter: ribbon
Woofer: 170 mm Ø ALTIMA®
Dimensions (H x W x D) in cm: 40,5 x 22,2 x 34,55 cm



Added 4/2014
