Active speakers

Teufel Concept B 200 USB

Teufel
System

2 way active HiFi PC stereo system

Price € 179.-
Cabinet Sealed
Amp

4 x 30 watt Class D



Digital input

USB

Analogue input 3.5mm minijack

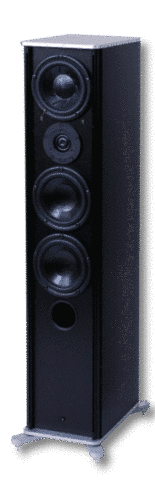

T+A KS active

Fully active three-way floor-standing loudspeaker with equalization and room position calibration

Output / Peakpower

Bass

140 Watts / 200 Watts

Mid-range

70 Watts / 100 Watts

Treble

70 Watts / 100 Watts

Dampingfactor

> 400

Total harmonic distortion (THD)

< 0,05 %

Cross-over unit

3-way active

DSP

Amplitude, phase and timing correction

Cross-over frequencies

370 Hz and 2500 Hz

Frequency range

28 Hz - 45 kHz

Drive units

Bass

2 x 150 mm long throw driver

Mid-range

1 x 150 mm special driver with embossed cone

Treble

1 x 35 mm ring radiator



VLSI Solution Oy - Servo 300 DSP loudspeaker

What's in a name?

If you call your product DSPeaker, you use DSP to control the Speaker as much as possible.

System

2 way active

Price € 1.065,00 (single)
Frequency Response 32 - 21000Hz (6dB)
Cabinet

Sealed, active suspension

220mm x 300mm x 250mm (w,h,d)

Digital input

N/A

Analogue input Balanced XLR (alternatively RCA)
3.5mm AntiModeTM microphone jack
Amp

Tweeter: 90 W

Woofer: 90 W

Current feedback

Crossover

DSP - 2150Hz, LinearPhase

Servo controlled bass

Room correction

Voice point VPA 160A

System

2 way active

Price € 4000,- (pair)
Frequency Response 40 Hz - 20 kHz (±2,5 dB)
Cabinet

Aluminium

Digital input

N/A

Analogue input XLR & RCA
Amp

2 x 190 W

Crossover



WADAX Speak 1.5

Active 2 way system

  • inputs: 2 balanced analogue inputs, 1 digital input.
  • Total combined power 800W RMS
  • DSP
  • Weight: 58 Kg / 127,87 Lbs per speaker
  • Dimensions (mm): H 1410 x W 600 x D 510
  • Price: $44,625/pair



XTZ MH 800 DSP

Active 2 way with a full range driver and DSP software.

System

2 way active

Price € 450
Frequency Response 40 Hz to 20kHz within +/- 1dB
Cabinet Vented
Digital input

USB

Analogue input RCA
Output

Headphone

Sub woofer

Drivers

Tymphany

3" Peerless Alu full range driver

51/4" woofer with polypropylen cone

Amp

2x40Watt Class-D

DSP

Dirac HD Sound (TM)

Speaker Optimization Software.

FIR + IIR filter
Mixed phase

PC and Mac compatible.

Yamaha NX-N500 $799.99 / pair

Active speaker featuring almost all digital inputs.

DLNA. AirPlay, streaming services over WiFi or Ethernet, Bluetooth, Toslink.



Wi-Fi Yes
DLNA Version 1.5
File Format MP3, WMA, MPEG4 AAC 48 kHz / 24 bit, WAV/FLAC/AIFF 192 kHz / 24 bit, ALAC 96 kHz / 24 bit, DSD 5.6MHz
AirPlay Yes
Bluetooth Profile 2.1 + EDR / A2DP, AVRCP
Audio Codec Sink: SBC/AAC, Souce: SBC
Type Bi-amp 2-way powered speaker
Woofers 13 cm (5") cone
Tweeter 3 cm (1") dome
Frequency Response 54 Hz - 40kHz (-10dB)
Crossover Frequencies 2 kHz
Analog Audio Input 1
Digital Audio Input: Optical 1
USB 1 (Type B)
Ethernet 1
Power Consumption 45 W + 45 W
Standby Power Consumption 0.2 W (L-channel only)
Dimensions (W x H x D) 170 x 285 x 222 mm; 6-3/4" x 11-1/4" x 8-3/4"
Weight (Right speaker) 5.9kg; 13.0lbs., (Left speaker) 6.3kg; 13.9lbs.



Added 2015
