USB DACs

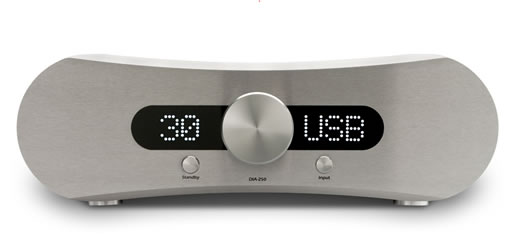

Gato Audio DIA-250 Integrated Amplifier $4,500

  • 2x 250W@8ohm / 2x 500W@4ohm
  • Class D output stage
  • Built in 24bit/192kHz D/A converter with upsampling
  • Coax, optical and asynchronous USB digital input up to 24bit/192kHz
  • Accepts digital streaming directly from Apple iPad
  • Two unbalanced and one balanced inputs
  • Nonmagnetic enclosure
  • Direct function; enables use in home theater sytems



Added 1/2014

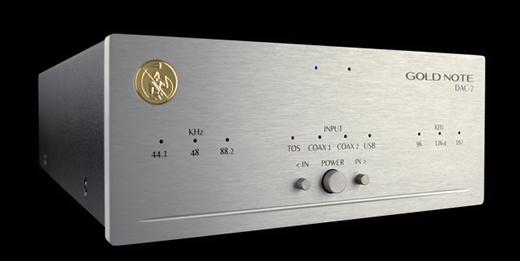

Gold Note DAC 7 715.00



SPECIFICATIONS

24/192 asynchronous 2.0 USB DAC

Driver for Windows
Supported sample rate: 44.1 – 48 – 88.2 – 96 – 176.4 – 192kHz
Supported audio format: all available
Frequency response: 20Hz-20kHz at +/-0.3dB
THD – Total Harmonic Distortion: 0.001% max
Signal to Noise ratio: -115dB
Dynamic response: 125dB

Audio inputs
USB: 24/192 asynchronous USB port
Digital input: two coaxial RCA, one optical TOSLINK

Audio outputs
Analogue output: stereo RCA and XLR balanced
Line output level: 2V RCA and 4V XLR, both fixed

Added 2014

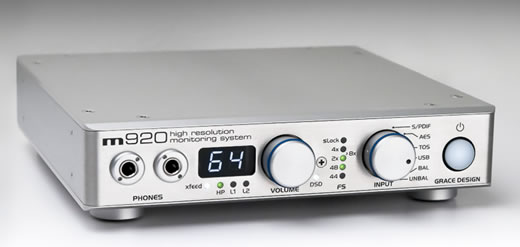

Grace Design m920 $1995



  • Stereo analog inputs - balanced (+4dBu) XLR and unbalanced (-10dBv) RCA.
  • Ultra low distortion 32-bit /384khz Sabre DAC accepts stereo digital input source in AES3, S/PDIF, TOSLINK (optical) and USB formats with auto sample rate detection and digital de-emphasis filter
  • User configurable DAC filter response for PCM and DSD playback
  • USB for playback of up to 384kHz / 32 bit PCM as well as DSD64 and DSD128 playback via DoP
  • AES and S/PDIF playback of up to 192kHZ / 24bit PCM as well as DSD64 playback via DoP
  • New dual-stage wide lock range PLL for improved jitter rejection on non s-locked sources
  • Third generation s-Lock™ dual stage PLL (phase lock loop) circuitry for the ultimate in low jitter clocking and sonic integrity
  • Two sets of line level outputs provided via RCA (unbalanced) and ¼ TRS jacks (balanced) for connection to stereo monitors


Added 2016

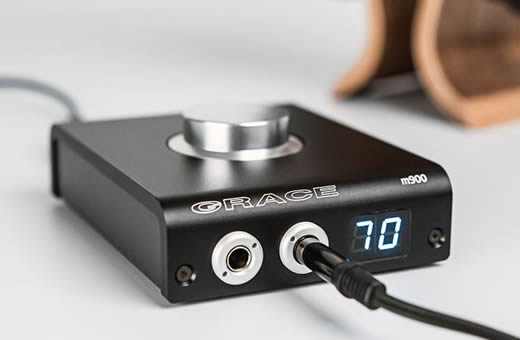

Grace Design M900 $499.00

Portable headphone amplifier / DAC / preamp



  • USB, S/PDIF and Toslink digital inputs, supports up to 192kHz (Toslink up to 96kHz)
  • Asynchronous USB interface for jitter free computer audio playback, supports up to 384kHz PCM and 256x DSD
  • Dual zero ohm output impedance headphone outputs
  • Unbalanced level controlled outputs via RCA for connecting to a stereo monitor system
  • Compact, portable chassis perfect for travel, desktop or studio
  • Low power mode via USB Bus power
  • High power mode via included USB 2A power supply
  • 4 different DAC filter settings to tailor playback performance to personal preference
  • Simple user setup menu for setup and calibration
  • 7 segment LED display displays level and setup menu information
  • Large rotary encoder for volume control and setup menu navigation
Added 2017
