Active speakers

Abacus A-box 10

System

2 way active system

Price pair: €1190,- (incl. VAT)
Frequency response 16…200-20.000Hz
Cabinet

Sealed

Digital input

N/A

analog input

RCA Line-Input

Balanced input (XLR or 6,3mm jack)

Drivers

16,5cm (6,5”) Woofer

25,4mm (1”) Tweeter

Amp

50W RMS

Crossover

DSP

Crossover at 2500Hz

Bass roll-off continuously adjustable from 16 Hz to 200 Hz

H x W x D

210×235×353,5 mm

10 Liter



Acoustic Energy AE1 Active US$ 1,590



Drive Unit: 125mm ceramic aluminium sandwich cone
Tweeter: 25mm aluminium dome
Frequency Range:42Hz – 28kHz +/-6dB
Input Sensitivity:104dB for 1VRMS @ 1kHz
Peak SPL: 115dB
Maximum SPL: 105dB
Amplifier: Class A/B with linear power supply
Power: 100w
Crossover Frequency: 3.5kHz 4th Order Linkwitz-Riley
Inputs: RCA and Balanced XLR
Controls: Volume adjust 0dB to -inf/ HF shelf +/-2dB / LF shelf +/-2dB


Power Connection: IEC C13
Voltage: Switchable 110 / 240v
Safety Certification: CE EN55013/20
Design: 2 way active
Cabinet: 18mm MDF with bracing and damping panels
Grilles: Slim, cloth magnetic fit
Dimensions (mm): 300 x 185 x 250 (HxWxD)
Weight: 18kg (pair)
Finishes: Piano Black, Piano White and Piano Walnut real wood veneer



Added 2019

ADAM ARTist 6

System

2 way active

Price 1300 EUR (pair)
Frequency response 48 Hz - 50 kHz
THD 90dB/1m > 100 Hz ≤0.6 %
Long term output ≥103 dB
Max. peak ≥111 dB
Speakers

ART tweeter

2 mid/woofer

Cabinet

Vented

Digital input

-

analog input XLR / RCA
Amp

3 x 25 W / 40 W A/B

Crossover

2800 Hz

Height x Width x Depth 34" (865 mm) x 5.5" (135 mm) x 7.5" (185 mm)



Out of production.



After all kind of financial problems, Adam returned to its roots; making studio monitors.
Of course their hallmark, the ATM tweeter remained.







Adam SV5

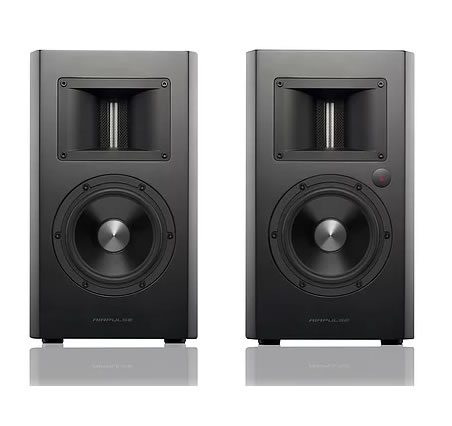

Airpulse Model One $995.00/pair

  • Proprietary horn loaded Ribbon Tweeter.
  • Cast frame under-hung coil woofer with hard anodized Aluminum cone.
  • 25mm MDF enclosure with real Cherry wood veneer.
  • 70 watt ( woofer)and 20 watt( tweeter) amplifiers electronic 24dB/Octave crossover
  • DSP error correction for ultra flat frequency response 40-20KHz
  • Remote control for level and input select.
  • Analog, digital coax, optical and Balance line inputs.
  • Accepts up to 192 KHz digital.
  • Rear Bass and Treble and Volume adjustment.
  • Proprietary elliptical air flowed vent for high level low distortion bass.
  • Universal voltage 85-260 volt AC power input.



Added 2019

AGM 3.3

AGM = Aktiv Geregelter Monitor



3-way active with SPDIF input.

Added 2016

APS Trinity € 2.490,00



3 way active with analog input



Coax € 1.400,- (pair)

Any finish on request.

Type

Active – two power amplifiers:

  • Tweeter: monolithic integrated circuit TDA7294
  • Woofer: monolithic integrated circuit TDA7294
System Two-way
Crossover Frequenc 3 kHz (slope: 12 dB/octave)
Dimensions: Height x Width x Dept 21 cm x 33 cm x 30 cm
Free Field Frequency Response +/- 2 dB: 50 Hz - 22 kHz
SPL in Free Field @ 1m RMS: 101 dB
Peak: 109 dB
Weight 11 kg
Coaxial loudspeaker
Bass/Mid-Range Loudspeaker   Ø 18 cm
Diaphragm: polypropylene, surround: rubber
Tweeter Loudspeaker  Ø 2.5 cm
Diaphragm : fabric dome


Amplifiers
Bass/Mid-Range Power Amplifier 70 W RMS @ 8Ω
Tweeter Power Amplifier 70 W RMS @ 6Ω
Total Harmonic Distortion 0.005 % – PO = 5 W, f = 1 kHz
0.1 % max – PO = 0.1 up to 50 W, f = 20 Hz up to 20 kHz
Signal to Noise Ratio 103.5 dB – weighted by A curve
101 dB – in band of 20 Hz up to 20 kHz
Input Voltage Level for 100 dB SPL in Free Field @ 1m 0 dBu (i.e. 0.775 V) – calibrated regulators in 0 dBu, 0 dB position



Added 2016

Audio Pro Lving LV3 - 1.699 (pair)



No longer in production.

ART RM5 $499/pair

Active 2 way with aluminium body.

Analog and Bluetooth input.



System Type Active 2-Way Stereo
Program Power (Watts) 300 W
Max SPL (dB) 109
Frequency Respons (Hz +/- 3dB) 45-22,000
Crossover Frequency (Hz) 2200
HF Driver(s) High Resolution Ring Radiator
Centre Plug to Improve Off Axis Response
HF Program Power (Watts) 25W (x 2)
LF Driver(s) 5-inch High X-Max Composite woofer
LF Program Power (Watts) 125W (x 2)
LF Protection Thermal / Peak (X-max)
Inputs 2 x XLR & ¼-inch TRS Balanced Combi-Jacks (Left/Right),
Stereo 1/8-inch TRS Jack / Bluetooth Wireless Streaming
Mode Controls Reference, HiFi, and Theatre Room Compensation
1/4 Space, 1/2 Space and Full Space
Level Controls Master Level
Cabinet Material Aluminum Unibody Design
Bass Principal Dual Opposing Passive Radiator
Dimensions (DWH inches) 3.6 x 7.6 x 12.4
Dimensions (DWH cm) 9 x 19 x 31
Weight (lbs/kg) 20 / 9 (Pair)



Added 2020

AudioSense Open Baffle



Active ready open baffle system.

5 ScanSpaker units, Berylium tweeter.

Active x-over (& room correction) by DEQX.



Price € 9250,- (pair)
Including DEQX: € 11.400,-

DEQX HDP3 with digital out and 3 x Mytek dac: € 16.150,-



Audiovector Si3 Signature Active Discreet £6,750/pair

Audio is received by a hub connected to class D amplifiers build into the cabinet.

Audiovector says you can stream to it but no information about the protocol used.

Available for several models.



Digital input: 20 Hz - 48 kHz (optical 96 kHz)
Analog input: 2V RMS/10 kOhm
Frequency response: 20Hz - 20kHz
THD: 1 kHz < 0.015%, - 6dB below full volume
Output Power 0.4%THD 3 x 70W peak in each speaker - 420W total system power
S/N Ratio >102 dB (A-weighing)
Efficiency > 94%
Crossovers: 12dB Bessel linear phase
Crossover frequencies: 300 Hz/2800 Hz by 3 Active DSP's

Added 4/2014

Audium Comp 8 Air

Beside SPDIF this model also support DLNA and Airplay.

These boxes and an app is all you need to build a system.

  • DSP
  • Room adaption
  • Bass-Management
  • AUDIUM App
  • Fullrange Ø: 100 mm (4")
  • Woofer Ø: 220 mm (9")
  • SPDIF Rate: up to 24/192 (opt+coax)
  • Amp Power Fullrange: 50W
  • Amp Power Woofer: 130W
  • Power Supply Output: 36V/200W
  • Dimensions (WxHxD): 250 x 1020 x 340 mm
  • Weight: 25 kg





ATC SCM20SL ATS

System

2 way active system

Price $ 12.000 (pair)
Frequency Response

80Hz–17kHz (±2dB)

60Hz–22kHz (±6dB)

Matched Response :±0.5dB

Dispersion

±80° Coherent Horizontal,

±10° Coherent Vertical

Digital input

N/A

analog input Balanced (XLR)
Amp

200w LF, 50w HF
Class A (to 2/3 max power)

Crossover

Active

Frequency : 2.8kHz



Avantgarde acoustic - Zero 1



3 way active speaker with 2 horns for mid and treble.

All the digital inputs.

Crossover and room adjustment implemented in DSP



Price € 9000
Drivers

Subwoofer: 30 – 250 Hz
Midrange horn: 250 – 2.000 Hz
Tweeter horn: 2.000 – 20.000 Hz

Digital input

S/PDIF

Toslink

AES/EBU

USB

analog input Optional (AD converter)
Amp

2 x 50 watts + 1 x 400 watts

Crossover

DSP: 6 channel, 66-bit FPGA

Filter steepness Up to 100 dB/octave
Filter type Progressive FIR filters
Phase shifts < 5 degrees
DAC 3 x 24-bit Burr & Brown

Master/slave radio link 2.4 GHz ISM/SRD
Amplitude linearization* Yes
Phase linearization* Yes
Room adjustment/equalization* 100 EQs, each with 16,000 frequency points
Weight 30 kg
BxHxD

490 x 1040 x 318 mm



AVI DM10  £1500



Technical Specifications

Power amplifiers: High speed, linear, analogue bipolar, 75 WPC for the tweeters and 250 WPC for the bass drivers. System distortion is typically better than 0.002%.

Crossovers: Active 8th order Linkwitz-Riley @ 2.0kHz

Preamplifier: High quality state of the art analogue preamplifier with two digital and one analogue input. Control is remote and volume settings are remembered for each separate input.

Volume control resolution: 1/2 dB steps 100dB range.

DAC: Wolfson WM8741 24/192 with SRC to 24/96 Stereo with optical S/PDIF.

Bass driver: Very high power handling, unique purpose designed long excursion 6.5" paper cone drive unit with 1.5" voice coil, copper shorting ring and exceptionally broad bandwidth to enable a phase perfect crossover at 2.00kHz. Bass extension is better than - 6dB @ 50 Hz.

Tweeter: 1" silk dome tweeter with exceptional linear travel and twin copper shorting rings -3 dB point of greater than 30 kHz.

System Amplitude Response: better than 30Hz - 20 kHz.

Low Frequency Response: 6dB at 50Hz
