Streaming audio player

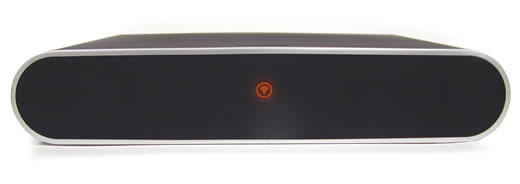

T+A MP 1260 R - DAC / NETWORK-CLIENT US$ 4,200


Streaming Client formats

MP3 , WMA, AAC, OGG-Vorbis, FLAC (192/24 via LAN) and WAV (192/24 via LAN) with gapless playback (where supported by server)

Supported media servers

UPnP AV, Microsoft Windows Player 10,

(MS DRM 10),

vTuner Internet Radio Service,

DLNA compatible servers


Web server (remote PC web browser control),

Audio network config.,

Internet Radio Station database

(automatic update via Internet)

digital access of iPod contents

(D/A conversion in MP 1260 R)


USB 2.0, iPod with control and display,

2 x Digitalentrances (SP/DIF)

coax + optical (TOS-Link),

16 ... 24 Bit, 24 ... 96 ks/S,


Audio data

Analogue outputs

Stereo 2,5 Veff / 22 Ohm

Digital outputs

1 x coax

IEC 60958 (LPCM)

D/A converter

32 Bit, 352,8/384 kHz Sigma Delta

8-times oversampling


free programmable signal processor with

4 selectable oversampling algorithms.

FIR short, FIR long, Bezier/IIR, Bezier

Analogue filters

Phase linear bessel filter

with 100 kHz limit frequency

Frequency response

2 Hz - 20 kHz

Total harmonic distortion

< 0.001 %

Signal / noise ratio

112 dB

Channel separation

106 dB



FM Radio 87,5 Mhz - 108 MHz

Input sensitivity

2 uV

Overload margin

> 125 dB

Overload damping (Stereo)

40 dB


Station name, radio text, clock


Mains sockets

100 - 240 V, 50 - 60 Hz, 40 VA

Dimensions (H x W x D)

7,5 x 44 x 39 cm


8 kg

Remote control

via R-System


silver aluminium, black


W-LAN Antenna

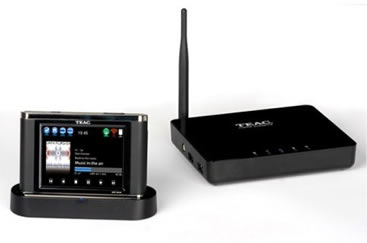

Teac WAP-8500 €399

Network: ethernet/Wlan

Protocol: DLNA/UPnP

Output: Line out, headphones out, S/PDIF digital optical out 44.1/48 kHz

Audio format: MP3, OGG, WMA, WAV / Internet radio


Touchscreen 3.5" colour LC display for function and track information
(ID3 tags, album cover, file name etc.)


Media Server Twonky media manager (DNLA) & local playback via USB
Supported formats

AAC, MP3, OGG, WMA, WAV, FLAC up to 24Bit/96kHz

Line-out up to 16Bit/48kHz

Other functions Control via Remote of WAP-8600 or WAP-9500
  Integrated power adaptor
  Internet radio and podcast
  Internet radio station access by vTuner (Full version with more than 10 000 stations), favourite list and via USB storage contents
  Supports FAT32 and NTFS file systems
  Power adaptors with international plugs EU,GB,US, AUS (Typ A,C,G,I)
Network connection WLAN 802.11n (wireless) or LAN (ethernet cable), UPnP and DLNA compatible client
Ports SATA, iPod-dock, headphones, Line-In, Bass/Treble/Level control, SPDIF, USBx2, RJ45, speaker, AC input
Line-out active subwoofer, headphones out, S/PDIF digital, optical out 44.1/48kHz
Frequenzy range 20-20.000 Hz
S/N >95dB
Accessoiries, not included iPod/iPhone-dock, USB stick for FM radio
Dimensions 350 x 246 x 65 mm


Also available with ICEpower amplifiers
